| ब्रांड नाम: | NUOYINGJIAYE |
| मॉडल संख्या: | NYCL-100G |
| एमओक्यू: | 1 टुकड़ा |
| कीमत: | $450 to $1700 /pcs |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | 1000 पीसी/ पूर्व महीना |

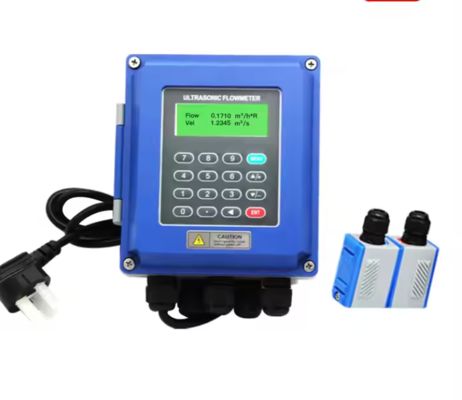

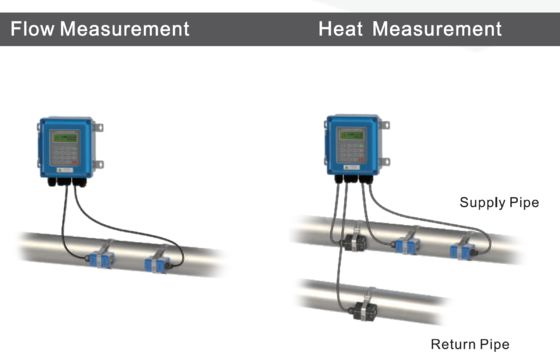

NYUF100W Clamp on type Ultrasonic Flow Meter for Flow and Heat Measurement
NYUF100W Ultrasonic Flowmeter Working Principle

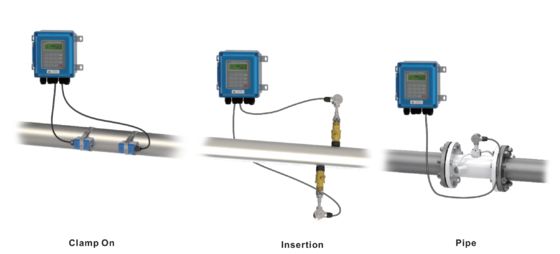

NYUF100W fixed ultrasonic flowmeter/heat and cold meter is widely used in online measurement of various liquids in industrial sites. It has the advantages of high precision, wide range ratio, no pressure loss, and simple installation. The clip-on and plug-in sensors are used for errors during installation due to human factors and pipeline factors; the split type is mostly used for wall-mounted installation; the explosion-proof type is mostly used in explosion-proof occasions, and the explosion-proof level is ExdIIBT4.
NYUF100W Fixed Ultrasonic Flowmeter Technical Parameters
| Measuring principle | Ultrasonic time difference type principle |
| Measuring range | 0～±10m/s |
| Measuring accuracy | ±1.0% |
| Direction of flow | Positive and negative bi-directional metering, and measurement of positive, negative and net cumulative flow heat |
| Data Interface | RS485 serial interface, can be upgraded through the PC computer to the flowmeter, support Modbus and other protocols |
| Data logging | External SD card data memory, can store time, instantaneous flow, cumulative flow, etc., and can import data to computer |
| Signal output | 4-20mA output, OCT pulse output, relay output. |
| Power supply method | Built-in NiMH rechargeable battery, can continue to work 15-20 hours |
| Measurement media | Water, seawater, sewage, alcohol, various oils and other media that can conduct ultrasound in a single, uniform, stable liquid |
| Media turbidity | ≤20,000ppm and small bubble content |
| Applicable Tubes | Carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastic and other uniform quality and density of the pipe, allowing a lining straight |
| Pipe Section | The sensor installation point should preferably meet: 10D upstream, 5D downstream, 30D from the pump outlet |
